BAUMER - SOLUTIONS FOR EVERY APPLICATION

BAUMER - SOLUTIONS FOR EVERY APPLICATION


  --  4/13/2009
Our market-approach strategy aims to take into account all the requirements – technology, quality, approval, certification – of each market sector or each specific market, so that we can propose the products best suited to our customers’ needs.







Our market-approach strategy aims to take into account all the requirements – technology, quality, approval, certification – of each market sector or each specific market, so that we can propose the products best suited to our customers’ needs.






SOLUTIONS
FOR EVERY APPLICATION

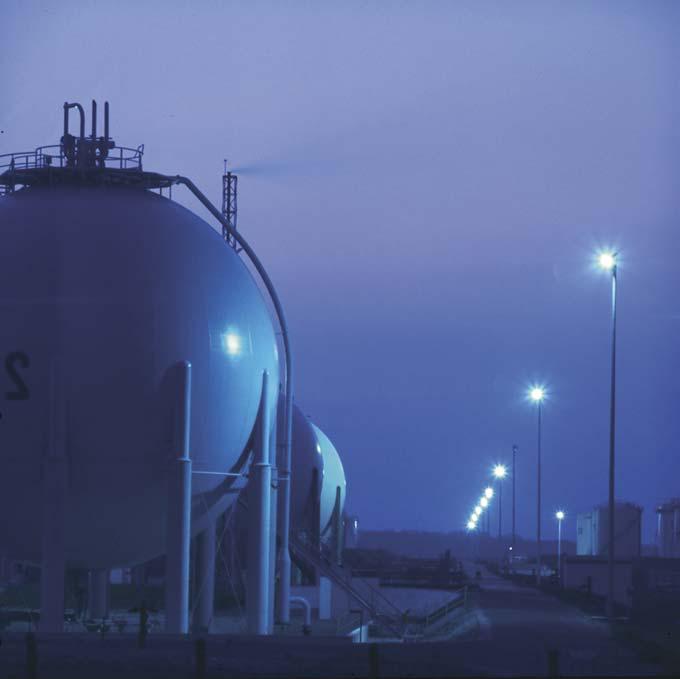

Chemical industry, Petrochemicals, Steel production, ...

Pharmaceuticals, Agro-foodstuffs, Biotechnology ... activity sectors for which we have a range of specific products for cyclic processes.

Power production, generators, rotating machines, test benches, applications where our products are commonly implemented for particular functions.

We also propose solutions designed for hydraulic, pneumatic or robotic control and servo-control

functions using large series of pressure and temperature sensors and transmitters.

Our recent developments respond to the needs of emerging technologies such as very-high-purity gas

flow for the semi-conductor industry.

Whatever the problem, our Research and Development Division can design a product complying with customer

specifications. Major contractors have placed orders with us in fields as varied as electro-nuclear, petroleum

extraction, land and air transport.






OUR
PRODUCTRANGE

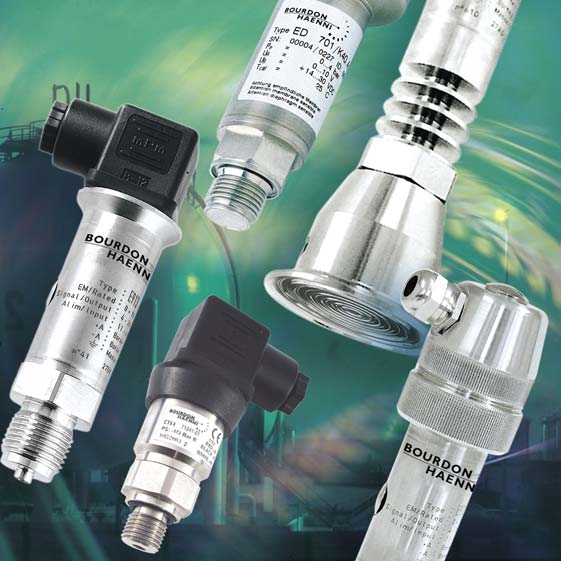

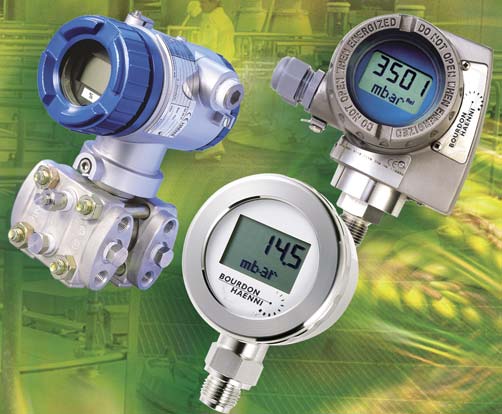

Pressure sensors and transmitters

Pressure gauges

Chemical seals and accessories

Pressure and temperature switches

Thermometers

Temperature sensors and transmitters

Test and calibration

Level conductivity and turbidity sensors, DIN-rail modules



Fixed measurement scales

Measurement of negative and compound pressure: -1 … 0 bar (-30"Hg … 0 psi) to -1 … +400 bar (-30"Hg … +5800 psi)

Pressure measurement (relative or absolute): 0 … +4 mbar (0 … +2"WC) to 0 … +6000 bar (0 … +87000 psi)

Differential pressure: +3.75 mbar … +20 bar (1.5"WC … +300 psi)

Technologies : Transbar® thick ceramic film, capacitive ceramic, thin film, bonded gauges, piezoresistive and capacitive silicium

Accuracy: better than 0.1% to 1%

Excellent long-term stability



Adjustable measurement scales

Fixed and adjustable measurement scales (ratio 1:25)

Output electrical signals: 0-10V, 0-5V, 1-5V, 0-20 and 4-20 mA

HART® communication protocol

"EEX ia" and "EEX d" versions comply with ATEX , CSA, CSA

US and FM directives.

Hygienic applications: 3A certification, compliant with

directives FDA, EHEDG, EN1672-2

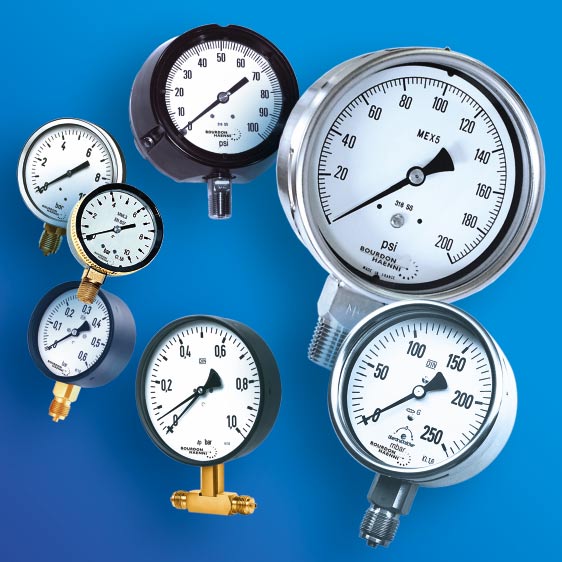

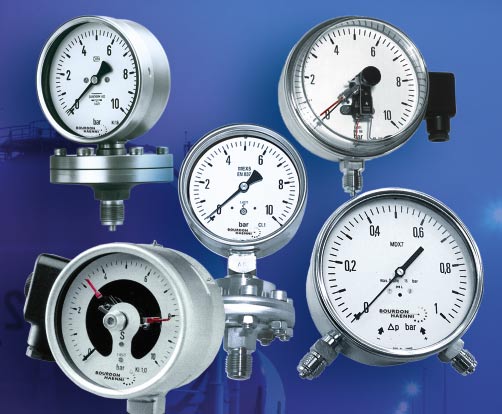

Pressure gauges

Negative and compound pressure measurement: -1 … 0 bar (-30"Hg … 0 psi) to -1 … +24 bar (-30"Hg … +350 psi)

Measurement of relative pressure: 0 … +16 mbar (0 … +6"WC) to 0 … +4000 bar (0 … +58000 psi)

Differential pressure: 0 … +10 mbar (0 … +4"WC) à 0 … +35 bar (0 … +500 psi) with maximum static pressure

from +400 bar (+5800 psi)

Diameters: from 40 to 160 mm



Accuracy class: 1 - 1,6 - 2 (as per standard EN837)

and ±0,5%, grade 2A (as per standard ANSI B40.1)

Sensing element and process connection: bronze,

brass, stainless steel, monel, hastelloy, ...

Anti-vibration system for some models

Hygienic applications: 3A certification, compliant with

directives FDA, EHEDG, EN1672-2




Pressure witches

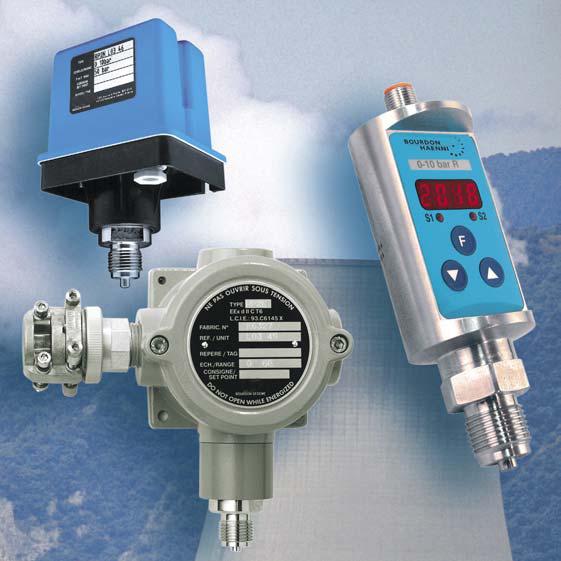

PRESSURE SWITCHES - Electro-mechanical range

Measurement of negative and compound pressure: -1 … 0 bar (-30"Hg … 0 psi) to -1 … +3,5 bar (-30"Hg … +50 psi)

Measurement of relative pressure: 0 … +600 bar (0 … +8700 psi)

Differential pressure: +2 … +2000 mbar (+30 … +30000 psi) to +0,05 … +120 bar (+725 … +1750 psi)

Very high resistance to overpressure

Repeatability: ±2% of the measurement range.

PRESSURE SWITCHES - Digital range

Measurement of negative pressure: -1 … 0 bar (-30"Hg … 0 psi)

Measurement of relative pressure: 0 … +400 bar (0 … +5800 psi)

Measurement of absolute pressure: 0 … +60 bar (0 … +900 psi)

Excellent accuracy: ±0,5% of the measurement range.

Excellent repeatability: ±0,2% of the measurement range.

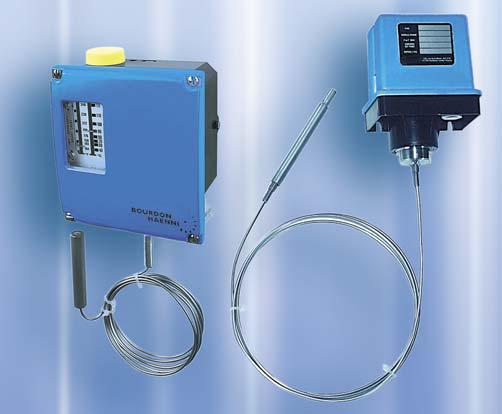

Temperature switches

TEMPERATURE SWITCHES

Measurement range:

-46°C to +350°C (-51°F to +662°F)

Very high resistance to accidentally raised temperature

Transmission capillary up to 20 meters long

Repeatability: ±1% or ±2% of the measurement range.

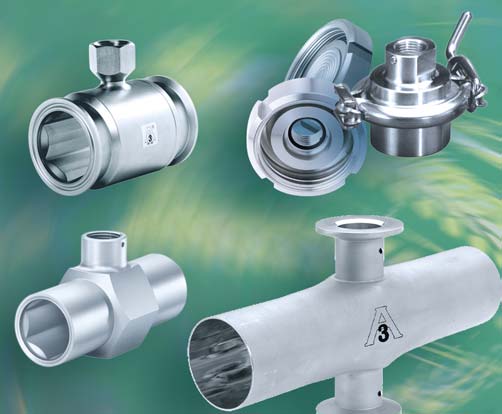

Chemical seals

Accessories

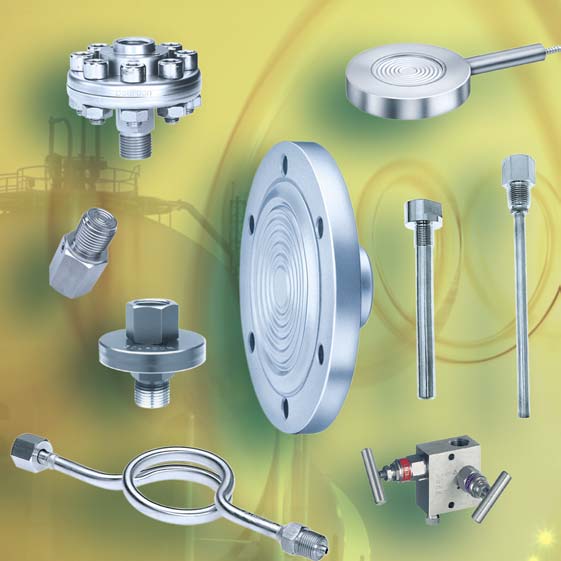

CHEMICAL SEALS

Very wide choice of materials and coatings: stainless steel, monel, hastelloy, tantalum, titanium, ...

Mounting with pressure gauges, pressure transmitters and pressure switches.

Measuring ranges: -1 … 0 bar (-30"Hg … 0 psi) to 0 … +1000 bar (0 … +14500 psi)

Fluid temperature:

-60°C to +200°C (-76°F … +392°F)

Ambient temperature:

-40°C to +90°C (-40°F … +194°F)

Mounting on ISO or ANSI flanges – flush diaphragm



Accessories

• pressure regulators,

• round securing flanges and flanges for temperature sensors,

• dome cocks and needle valves,

• 2-, 3- or 5- way manifolds,

• dampening connections, siphons, capillaries, nuts and

nozzles,

• thermowells : welded, bored or flanged for temperature

instruments.




Thermometers

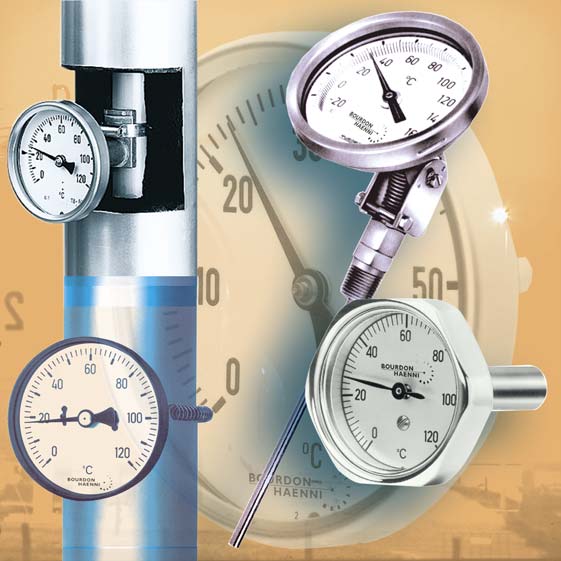

BIMETALLIC THERMOMETERS

Temperature range: -70°C to +600°C (-94°F to +1112°F)

Accuracy class: 1 - 1,6 - 2

IP rating: IP50 to IP67

Diameters: 40, 63, 100, 120, 130 and 160 mm

Stainless steel, brass or polypropylene cases

Stainless steel or brass stems

Types of mounting: direct, direct radial, direct concentric at rear, on wall panel and tilting panel

Stem diameters: from 4 to 8 mm

Stem lengths: from 35 to 1000 mm

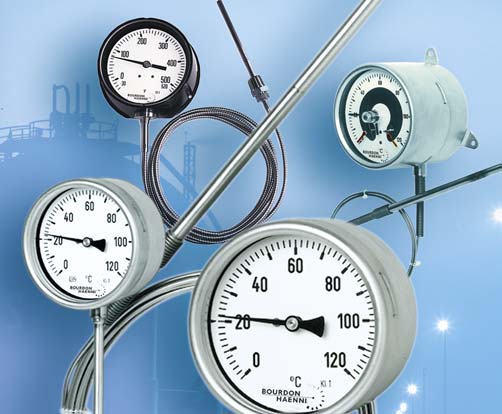

GAS EXPANSION THERMOMETERS

Temperature range: -200°C to +600°C (-328°F to +1112°F)

Accuracy class: 1 - 1,6

Diameters: 63, 100, 120, 130 and 160 mm

Stainless steel or polypropylene cases

With rigid stem or capillary tube (max. length 20 meters)

Types of mounting: direct radial, direct concentric at

rear, on panel, wall fitting

Sealed versions that can be filled with damping liquid

Versions with electrical contacts

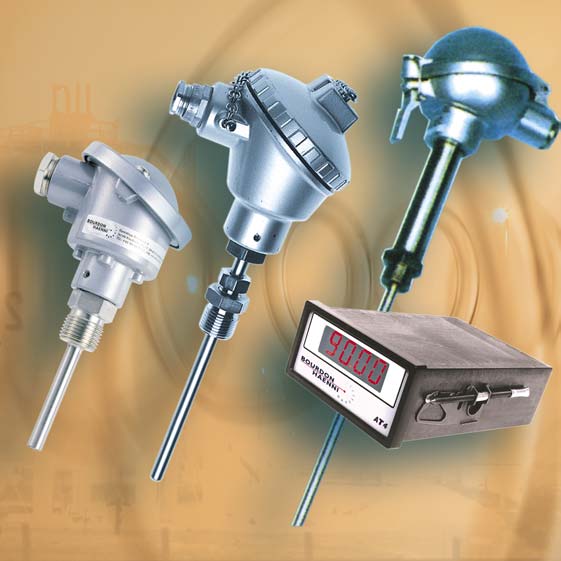

Temperature sensors

and transmitters

CombiTemp:

Measurement ranges: -200°C to +1820°C (-328°F to +3308°F)

Thermo-resistor accuracy: up to ±0,01%

Thermocouple accuracy: up to ±0,5%

Sensing elements: DIN A or 1/3, 1/2, 1/6 DIN B as per standard IEC 751

Class 1, 2 or 3 thermocouples as per standard IEC 584




BattTemp:

Electrical connection: 2, 3 or 4 wire (Pt100)

Wide choice of connection heads and DIN-rail

modules

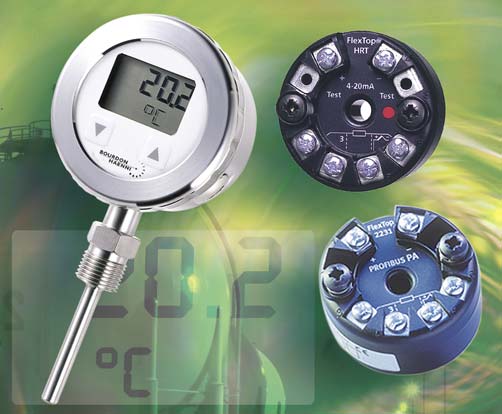

Transmitters (temperature and universal):

4-20 mA output, HART® or PROFIBUS-PA®

communication protocol

"EEx ia" and "EEx d" (comply with ATEX directives)

versions available

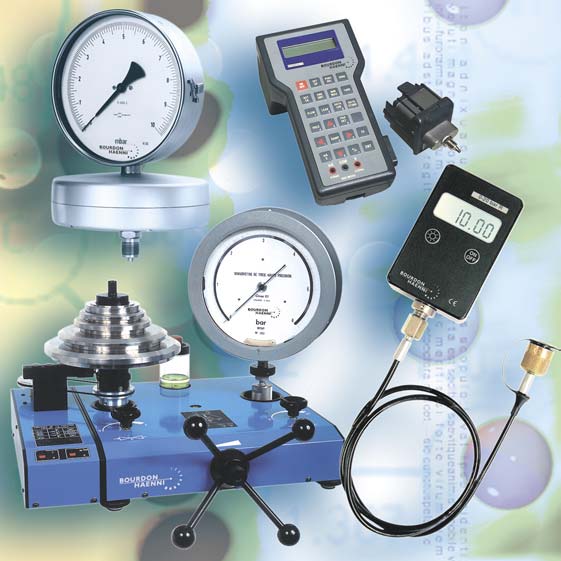

Test and

calibration

The Bourdon-Haenni Group has two accredited laboratories:

in France, a COFRAC -accredited pressure

calibration laboratory (N° 2-1523),



Pressure

MTH - MAC:

high precision pressure gauges. Class 0,2 and 0,1.

MV series:

test gauge. Class 0,5 and 0,25.

DRF - DKF:

test gauges. Class 0,6.

PM:

pneumatic and hydraulic pressure generating pumps,

from -0,8 to +1000 bar (-24"Hg to +14500 psi).

CP - CPE series:

air, oil or water pressure generators from -0,9 to +4000 bar

(-27"Hg to +58000 psi).

BL1 - BL2 series:

air and oil dead weight testers from -0,9 to +4000 bar

(-27"Hg to +58000 psi). Accuracy class : 0,03 to 0,01.

Barflex®4, ManocalP, PC6-Pro:

portable pressure calibrators from -1 to +1000 bar

(-30"Hg to +14500 psi). Accuracy: 0,25% to 0,025% of the

measurement range.

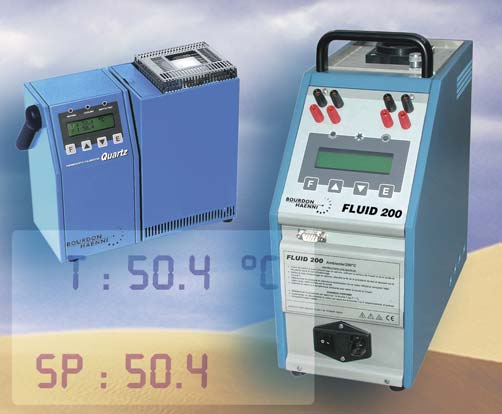

Temperature

Quartz, Joker+, Pyros, Pulsar, Solar: temperature

calibrators from -45°C to +1100°C (-49°F to +2012°F).

FLUID200: portable temperature bath.

Ambient temperature to +200°C (+392°F).

BK40 - TB300: laboratory temperature baths from -40°C

to +300°C (-40°F to +572°F).

Tempcal01: high precision thermometer for Pt100 from

-200°C to +850°C (-328°F to +1562°F).

Test and calibration modules and benches:

to customer specifications



in Switzerland, a calibration laboratory

with SCS accreditation for pressure, temperature and relative humidity (N° SCS 034).






Other

products

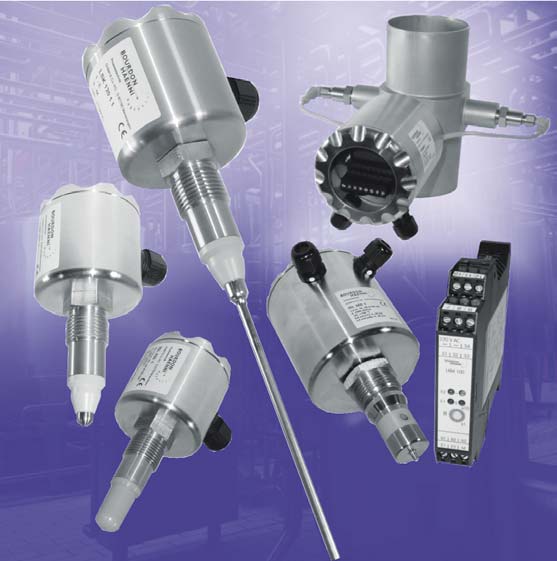

LEVEL CONDUCTIVITY AND TURBIDITY SENSORS

This group of products offers innovative improvements to traditional sensors already on the market to achieve

unequalled levels of accuracy and dependability with a hygienic design.

Turbidity measurement is made with dual sensor

in-line sections that employ direct and refl ected

signal principles to ensure optimum measurement

even through coloured liquids.

Level measurement and switch sensors are

available using conductivity, potentiometric and

electro-magnetic time of fl ight principles combined

with ratiometric circuitry. Valuable benefi ts

depending on the model include minimum intrusion

for small pipes, immunity to specifi c gravity,

vessel top pressure, condensation, foam, temperature

and product adhesion.

Conductivity measurement again employs a

ratiometric version of the standard transformer

principle to ensure high accuracy making it ideal

for accurate media or phase separation measurements.

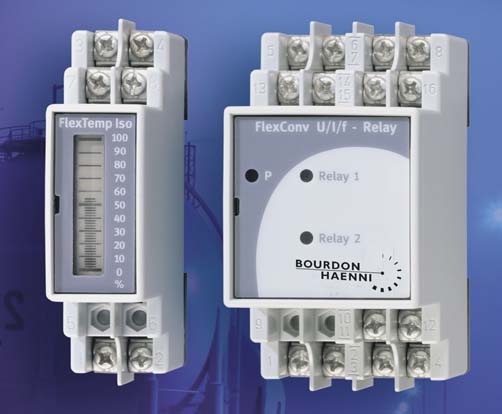

DIN-RAIL MODULES

model FlexConv U/l/f - U/l: an analogue signal or

pulse converter with galvanically separated input and

output.

Fitted with 2 relays and PC-configurable.

l/l or l/U analogue signal converter with current loop

power supply.

4-20 mA input amplifier, relay or opto-relay output with

galvanic isolation.

4-20 mA loop isolators: IsoLoop or LoopIsolator.

stabilised power supplies:

- 24 VDC/85 mA for HART® loop,

- 24 VDC/22 mA for pressure or temperature transmitters.
