Máy hút chân không IS-36 / IS-46 (dùng trong công nghiệp)

Máy hút chân không IS-36 / IS-46 (dùng trong công nghiệp)
Mã Sản phẩm : IS-36 / IS-46
Chuyên mục : Máy hút
Nhà sản xuất : Wieland Vietnam

Hàng sẵn kho : Đặt hàng
Nhà cung cấp : Gnn Vietnam
Tóm tắt:
IS-36 and IS-46, the professional units which can do everything. The industry standard in the range of small industrial vacuum cleaners.
Link file : http://www.wiel...
Hình ảnh :
Thông số chi tiết :

IS-36 and IS-46, the professional units which can do everything. The industry standard in the range of small industrial vacuum cleaners.

3 kW and 4kW driving power, three phase and compressed air powered

These units make no compromises!
Integrated cyclonic separator, pocket filter elements to the highest specification, 2nd filter stage as a HEPA absolute filter, pneumatic filter cleaning device with AirShock® as a standard, lifting and lowering device for the collection container, maintenance free vacuum pump for continuous operation with high suction power, suitable for all suction materials of dust classes L, M and H and B1. Explosion protection for explosive types of dust, gases and vapours according to the Atex standard. These units offer everything which is technically possible today

Wieland Vietnam

GNN Co., Ltd. (GNN Vietnam)
153 Nguyen Van Thu,
Da kao Ward., Dist.1,
HCMC, Vietnam
Phone +84 38 5174923, Fax +6684 38 5174924
E-mail: contact@gnnvietnam.com
Internet: www.gnnvietnam.com


Lĩnh vực ứng dụng :
  • Bao bì
  • Chế tạo máy
  • Công nghiệp tự động...
  • Dệt, nhuộm
  • Đóng tàu
  • Gạch men, gốm sứ
  • Giao thông Vận tải
  • Hàng không
  • Khoáng sản
  • Khuôn mẫu
  • Lắp ráp ô tô, xe máy
  • Nhựa, Cao su
  • Nông Nghiệp
  • Phân bón
  • Sản xuất điện
  • Sắt thép
  • Xây dựng
  • Xi măng
  • Xử lý nước

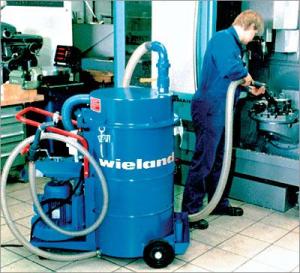

Minh họa ứng dụng :
Máy hút chân không IS-36 / IS-46 (dùng trong công nghiệp)
Ứng dụng đặc biệt :

Vacuum cleaning of a machining centre for brake callipers

An FS-216 extracts and separates metal chips and coolant. The coolant is returned from the collection drum to the coolant container of the machine. The chips are taken out of the collection drum and are disposed of.


Cleaning of machines for gear components


The chip containers of the machines are emptied manually with a MaxVac Central vacuum unit. The extracted material is collected centrally and is discharged automatically in large bins. Suction inlet valves cover the whole production area and are positioned in a way that vacuum cleaning can be done where required.



Cleaning of pallets after the machining cycle

A compact stationary vacuum unit type IS-76 Central extracts chips and coolant into its conical collection container. The suction material is discharged downwards onto a chip conveyor. An additional exhaust air silencer makes the unit extremely quiet.
