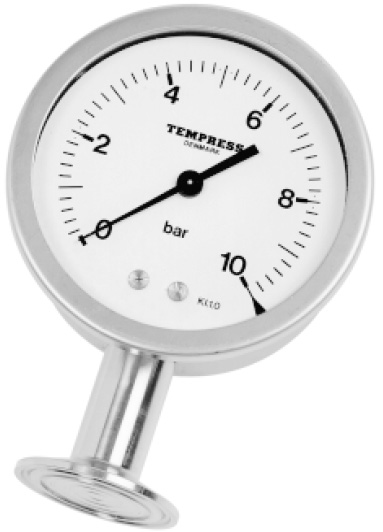

Pressure gauge with diaphragm seal
1½" Tri-Clamp® (DN38) ISO clamp
· TEMPRESS pressure gauge with
diaphragm seal, type A330301/4110
TR7604 with 1½" clamp is made
of stainless steel, AISI 316
· Diaphragm of AISI 316L
· Hygienic
· l Pressure gauge DN 100,
with bottom connection
- Temperature compensated
- Media temperature of up to 130°C
(265°F)
· Ambient temperature of up to 60°C
(140°F)
· Lower parts with other connections
eg. G3¤8B, G½B and 1½" welding liner
· Stock item
Pressure gauge with diaphragm seal
The TEMPRESS pressure gauge with diaphragm
seal is an ideal solution in situations where the
medium is not to come in contact with the
instrument´s measuring system whether for
reasons of hygiene or due to the thick, crystallising
or polluted nature of the medium.
The TR7604 diaphragm seal is a hygienic 1½" clamp
(Tri-Clamp®) which fulfils the standard of ISO 2852.
The ultra-thin diaphragm in stainless and acid
resistant steel is welded to the top part, allowing it
considerable freedom of movement. This gives the
instrument a high degree of durability and a level
of precision better than ±1% F.S.
Temperature compensated
The unique temperature compensation system
guarantees a correct reading even during extreme
variations in the ambient temperature.
The system automatically compensates for
changes in the ambient temperature of up to 60°C
(140°F).
A wide range of other possibilities
The pressure gauge with diaphragm seal is one of
more than 150 types TEMPRESS can supply.
Contact our sales department or your local
TEMPRESS representative for further infomation.
|
