The next generation Q Series has arrived

Product

Model

Outline

CPU

Q02UCPU

No. of I/O points: 2048 points, no. of I/O device points: 8192 points, program capacity: 20 k steps,

basic operation processing speed (LD instruction): 0.04 ms, program memory capacity: 80 KB,

peripheral connection ports: USB and RS232, with memory card I/F

Q03UDCPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 30 k steps,

basic operation processing speed (LD instruction): 0.02 ms, program memory capacity: 120 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and RS232, with memory card I/F

Q04UDHCPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 40 k steps,

basic operation processing speed (LD instruction): 0.0095 ms, program memory capacity: 160 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and RS232, with memory card I/F

Q06UDHCPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 60 k steps,

basic operation processing speed (LD instruction): 0.0095 ms, program memory capacity: 240 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and RS232, with memory card I/F

Q13UDHCPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 130 k steps,

basic operation processing speed (LD instruction): 0.0095 ms, program memory capacity: 520 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and RS232, with memory card I/F

Q26UDHCPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 260 k steps,

basic operation processing speed (LD instruction): 0.0095 ms, program memory capacity: 1040 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and RS232, with memory card I/F

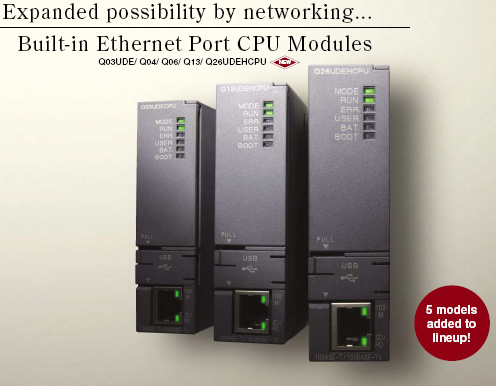

Q03UDECPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 30 k steps,

basic operation processing speed (LD instruction): 0.02 ms, program memory capacity: 120 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and Ethernet, with memory card I/F

Q04UDECPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 40 k steps,

basic operation processing speed (LD instruction): 0.0095 ms, program memory capacity: 160 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and Ethernet, with memory card I/F

Q06UDEHCPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 60 k steps,

basic operation processing speed (LD instruction): 0.0095 ms, program memory capacity: 240 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and Ethernet, with memory card I/F

Q13UDEHCPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 130 k steps,

basic operation processing speed (LD instruction): 0.0095 ms, program memory capacity: 520 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and Ethernet, with memory card I/F

Q26UDEHCPU

No. of I/O points: 4096 points, no. of I/O device points: 8192 points, program capacity: 260 k steps,

basic operation processing speed (LD instruction): 0.0095 ms, program memory capacity: 1040 KB,

multiple CPU high-speed communication, peripheral connection ports: USB and Ethernet, with memory card I/F

Battery

Q6BAT

Replacement battery

Q7BAT

Replacement large-capacity battery

Q7BAT-SET

Large-capacity battery with holder for mounting CPU

Q8BAT

Replacement large-capacity battery module

Q8BAT-SET

Large-capacity battery module with CPU connection cable

Memory card

Q2MEM-1MBS

SRAM memory card, capacity: 1 MB

Q2MEM-2MBS

SRAM memory card, capacity: 2 MB

Q3MEM-4MBS

SRAM memory card, capacity: 4 MB

Q3MEM-4MBS-SET

SRAM memory card with cover, capacity: 4 MB

Q3MEM-8MBS

SRAM memory card, capacity: 8 MB

Q3MEM-8MBS-SE

SRAM memory card with cover, capacity: 8 MB

Q2MEM-2MBF

Linear Flash memory card, capacity: 2 MB

Q2MEM-4MBF

Linear Flash memory card, capacity: 4 MB

Q2MEM-8MBA

ATA card, capacity: 8 MB

Q2MEM-16MA

ATA card, capacity: 16 MB

Q2MEM-32MBA

ATA card, capacity: 32 MB

Memory card adapter

Q2MEM-ADP

Adapter for Q2MEM memory card's standard PCMCIA slot

SRAM card battery

Q2MEM-BAT

Replacement battery for Q2MEM-1MBS and Q2MEM-2MBS

Q3MEM-BAT

Replacement battery for Q3MEM-4MBS and Q3MEM-8MBS

Connection cable

QC30R2

RS-232 cable for connecting personal computer and CPU, 3 m (between mini-DIN6P and Dsub9P)

Cable disconnection

prevention holder

Q6HLD-R2

Holder for preventing RS-232 cable (programmable controller CPU connection) disconnection

Base

Main base

Q33B

3 slots, 1 power supply module required, for Q Series modules

Q36B

5 slots, 1 power supply module required, for Q Series modules

Q38B

8 slots, 1 power supply module required, for Q Series modules

Q312B

12 slots, 1 power supply module required, for Q Series modules

Slim type main base

Q32SB

2 slots, 1 slim type power supply module required, for Q Series modules

Q33SB

3 slots, 1 slim type power supply module required, for Q Series modules

Q35SB

5 slots, 1 slim type power supply module required, for Q Series modules

Redundant power

main base

Q38RB

8 slots, 2 redundant power supply modules required, for Q Series modules

Multiple CPU high

speed main base

Q38DB

8 slots, 1 power supply module required, for Q Series modules

Q312DB

12 slots, 1 power supply module required, for Q Series modules

         Extension base

Q63B

3 slots, 1 power supply module required, for Q Series modules

Q65B

5 slots, 1 power supply module required, for Q Series modules

Q68B

8 slots, 1 power supply module required, for Q Series modules

Q612B

12 slots, 1 power supply module required, for Q Series modules

Q52B

2 slots, power supply module not required, for Q Series modules

Q55B

5 slots, power supply module not required, for Q Series modules

Redundant power

extension base

Q68RB

8 slots, 2 redundant power supply modules required, for Q Series modules

Extension cable

QC05B

0.45 m cable for connecting extension base unit

QC06B

0.6 m cable for connecting extension base unit

QC12B

1.2 m cable for connecting extension base unit

QC30B

3 m cable for connecting extension base unit

QC50B

5 m cable for connecting extension base unit

QC100B

10 m cable for connecting extension base unit

Adapter

Q6DIN1

DIN rail mounting adapter for Q38B, Q312B, Q68B, Q612B, Q38RB, Q68RB, Q65WRB, Q38DB, and Q312DB

Q6DIN2

DIN rail mounting adapter for Q35B, Q65B, and Q00JCPU

Q6DIN3

DIN rail mounting adapter for Q32SB, Q33SB, Q35SB, Q33B, Q52B, Q55B, and Q63B

Q6DIN1A

DIN rail mounting adapter (with vibration-proofing bracket set) for Q3□B, Q5□B, Q6□B, Q38RB, Q68RB, and Q65WRB

Blank cover

QG60

Blank cover for I/O slot

Power supply

Q61P

Input voltage: 100 to 240 V AC, output voltage: 5 V DC, output current: 6 A

Q62P

Input voltage: 100 to 240 V AC, output voltage: 5/24 VDC, output current: 3/0.6 A

Q63P

Input voltage: 24 V DC, output voltage: 5 V DC, output current: 6 A

Q64PN(note 8)

Input voltage: 100 to 240 V AC, output voltage: 5 V DC, output current: 8.5 A

Slim type power supply

Q61SP

Input voltage: 100 to 240 V AC, output voltage: 5 V DC, output current: 2 A

Redundant power supply

Q63RP

Input voltage: 24 V DC, output voltage: 5 V DC, output current: 8.5 A

Q64RP

Input voltage: 100 to 120/200 to 240 V AC, output voltage: 5 V DC, output current: 8.5 A

Product

Model

Outline

Input

AC

QX10

16 points, 100 to 120 V AC, 8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common,18-point terminal block

QX28

8 points, 100 to 240 V AC, 17 mA (200 V AC, 60 Hz)/14 mA (200 V AC, 50 Hz)/8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 8 points/common, 18-point terminal block

DC (Positive common) (note 1)

QX40

16 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, positive common, 18-point terminal block

QX40-S1

16 points, 24 V DC, 6 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 16 points/common, positive common, 18-point terminal block

QX41 (note 2)

32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common, 40-pin connector

QX41-S1 (note 2)

32 points, 24 V DC, 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common, positive common, 40-pin connector

QX42

64 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common, 40-pin connector

QX42-S1 (note 2)

64 points, 24 V DC, 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common, positive common, 40-pin connector

AC/DC (Note 1)

QX5

16 points, 48 V AC/DC, 4 mA, response time: 20 ms, 16 points/common, positive/negative common, 18-point terminal block

DC sensor (note 1)

QX70

16 points, 5/12 V DC, 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 16 points/common, positive/negative common, 18-point terminal block

QX71

32 points, 5/12 V DC, 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 32 points/common, positive/negative common, 40-pin connector

QX72

64 points, 5/12 V DC, 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 32 points/common, positive/negative common, 40-pin connector

DC (Nedative common) (note 1)

QX80

16 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, negative common, 18-point terminal block

QX81 (note 3)

32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, negative common, 37-pin D-sub connector

QX82 (note 2)

64 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, negative common, 40-pin connector

QX82-S1 (note 2)

64 points, 24 V DC, 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common, negative common, 40-pin connector

Output

Relay

QY10

16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 18-point terminal block

QY18A

8 points, 24 V DC/240 V AC, 2 A/point, response time: 12 ms, 18-point terminal block, all points independent

Triac

QY22

16 points; 100 to 240 V AC; 0.6 A/point; 4.8 A/common; minimum load voltage/current: 24 V AC/100 mA, 100 to 240 V AC/25 mA; response time: 1 ms + 0.5 cycle, 16 points/common, 18-point terminal block, with surge suppressor

Transistor (sink)

QY40P

16 points, 12 to 24 V DC, 0.1 A/point, 1.6 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block, with thermal and short-circuit protection and surge suppressor

QY41P (note 2)

32 points, 12 to 24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector, with thermal and short-circuit protection and surge suppressor

QY42P (note 2)

64 points, 12 to 24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector, with thermal and short-circuit protection and surge suppressor

QY50

16 points, 12 to 24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, sink type,18-point terminal block, with surge suppressor and fuse

Transistor

(Independent)

QY68A

8 points, 5 to 24 V DC, 2 A/point, 8 A/module, response time: 10 ms, sink/source type, 18-point terminal block,with surge suppressor, all points independent

TTL CMOS

QY70

16 points, 5 to 12 V DC, 16 mA/point, 256 mA/common, response time: 0.5 ms, 16 points/common, sink type,18-point terminal block, with fuse

QY71 (Note 2)

32 points, 5 to 12 V DC, 16 mA/point, 512 mA/common, response time: 0.5 ms, 32 points/common, sink type, 40-pin connector,with fuse

Transistor (Source)

QY80

16 points, 12 to 24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, source type,18-point terminal block,with surge suppressor and fuse

QY81P (Note 3)

32 points, 12 to 24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, source type, 37-pin D-sub connector,with thermal and short-circuit protection and surge suppressor

I/O

DC input/

Transistor output

QH42P (Note 2)

Input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common;

output: 32 points, 12 to 24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type;40-pin connector, with thermal and short-circuit protection and surge suppressor

QX48Y57

Input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common;

output: 32 points, 12 to 24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type;40-pin connector, with thermal and short-circuit protection and surge suppressor

QX41Y41P(Note2)

Input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common;

output: 32 points, 12 to 24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type;40-pin connector, with thermal and short-circuit protection and surge suppressor

Interrupt module

QI60

16 points, 24 V DC, 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 16 points/common, 18-point terminal block

Connector

A6CON1

40-pin cnnector, soldering type

A6CON2

40-pin connector, crimp-contact type

A6CON3

40-pin connector, IDC for flat cables

A6CON4

40-pin connector, soldering type (cable connectable in bidirection)

A6CON1E

37-pin D-sub connector, soldering type

A6CON2E

37-pin D-sub connector, crimp-contact type

A6CON3E

37-pin D-sub connector, IDC for flat cables

Spring clamp terminal block

Q6TE-18S

For 16-point I/O modules, 0.3 to 1.5 mm2 (22 to 16 AWG)

Terminal block adaper

Q6TA32

For 32-point I/O modules, 0.5 mm2 (20 AWG)

Q6TA32-TOL

Q6TA32 dedicated tool

Connector/terminal block conversion module

A6TBXY36

For positive common input modules and sink output modules (standard type)

A6TBXY54

For positive common input modules and sink output modules (2-wire type)

A6TBX70

For positive common input modules (3-wire type)

A6TBX36-E

For negative common input modules (standard type)

A6TBX54-E

For negative common input modules (2-wire type)

A6TBX70-E

For negative common input modules (3-wire type)

A6TBY36-E

For source output modules (standard type)

A6TBY54-E

For source output modules (2-wire type)

Cable

AC05TB

For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink type); 0.5 m

AC10TB

For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink type); 1 m

AC20TB

For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink type); 2 m

AC30TB

For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink type); 3 m

AC50TB

For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink type); 5 m

AC80TB

For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink type); 8 m *Common current 0.5 A or lower

AC100TB

For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink type); 10 m *Common current 0.5 A or lower

AC05TB-E

For A6TBX36-E, A6TBY36-E, A6TBX54-E, A6TBY54-E, and A6TBX70-E (negative common/source type); 0.5 m

AC10TB-E

For A6TBX36-E, A6TBY36-E, A6TBX54-E, A6TBY54-E, and A6TBX70-E (negative common/source type); 1 m

AC20TB-E

For A6TBX36-E, A6TBY36-E, A6TBX54-E, A6TBY54-E, and A6TBX70-E (negative common/source type); 2 m

AC30TB-E

For A6TBX36-E, A6TBY36-E, A6TBX54-E, A6TBY54-E, and A6TBX70-E (negative common/source type); 3 m

AC50TB-E

For A6TBX36-E, A6TBY36-E, A6TBX54-E, A6TBY54-E, and A6TBX70-E (negative common/source type); 5 m

Relay termianl module

A6TE2-16SRN

For 40-pin connector 24 VDC transistor output modules (sink type)

Cable

AC06TE

For A6TE2-16SRN, 0.6 m

AC10TE

For A6TE2-16SRN, 1 m

AC30TE

For A6TE2-16SRN, 3 m

AC50TE

For A6TE2-16SRN, 5 m

AC100TE

For A6TE2-16SRN, 10 m

Product

Model

Outline

Analog input

Voltage input

Q68ADV

8 channels; input: -10 to 10 VDC; output (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000, 0 to 16000,-16000 to 16000; conversion speed: 80 ms/channel; 18-point terminal block

Current input

Q62AD-DGH

2 channels; input: 4 to 20 mA DC; output (resolution): 0 to 32000, 0 to 64000; conversion speed: 10 ms/2 channels;18-point terminal block; channel isolated; supplies power to 2-wire transmitter

Q66AD0DG(note 5)

6 channels; input: 4 to 20 mA DC (when 2-wire transmitter is connected), 0 to 20 mA DC; output (resolution): 0 to 4000, 0 to 12000;conversion speed: 10 ms/channel; 40-pin connector; channel isolated; supplies power to 2-wire transmitter

Q68ADI

8 channels; input: 0 to 20 mA DC; output (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000, 0 to 16000,-16000 to 16000; conversion speed: 80 ms/channel; 18-point terminal block

Voltage/current input

Q64AD

4 channels; input: -10 to 10 VDC, 0 to 20 mA DC; output (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000,0 to 16000, -16000 to 16000; conversion speed: 80 ms/channel; 18-point terminal block

Q64AD-GH

4 channels; input: -10 to 10 VDC, 0 to 20 mA DC; output (resolution): 0 to 32000, -32000 to 32000, 0 to 64000, -64000 to 64000;conversion speed: 10 ms/4 channels; 18-point terminal block, channel isolated

Q68AD-G(note 5)

8 channels; input: -10 to 10 VDC, 0 to 20 mA DC; output (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000,0 to 16000, -16000 to 16000; conversion speed: 10 ms/channel; 40-pin connector, channel isolated

Analog output

Voltage output

Q68DAVN

8 channels; input (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000, -16000 to 16000; output: -10 to 10 VDC;conversion speed: 80 ms/channel; 18-point terminal block, transformer isolation between power supply and output

Current output

Q68DAIN

8 channels; input (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000; output: 0 to 20 mA DC;conversion speed: 80 ms/channel; 18-point terminal block, transformer isolation between power supply and output

Voltage/current output

Q62DAN

2 channels; input (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000, -16000 to 16000;output: -10 to 10 VDC, 0 to 20 mA DC; conversion speed: 80 ms/channel; 18-point terminal block,transformer isolation between power supply and output

Q62DA-FG

2 channels; input (resolution): 0 to 12000, -12000 to 12000, -16000 to 16000; output: -12 to 12 VDC, 0 to 22 mA DC;conversion speed: 10 ms/2 channels; 18-point terminal block; channel isolated

Q64DAN

4 channels; input (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000, -16000 to 16000;output: -10 to 10 VDC, 0 to 20 mA DC; conversion speed: 80 ms/chanel; 18-point terminal block;transformer isolation between power supply and output

Q66DA-G(note 5)

6 channels; input (resolution): 0 to 4000, -4000 to 4000, 0 to 12000, -12000 to 12000, -16000 to 16000;output: -12 to 12 VDC, 0 to 22 mA DC; conversion speed: 6 ms/channel; 40-pin connector; channel isolated

Temp-

erature input

RTD

Q64RD

4 channels, platinum RTD (Pt100 [JIS C1604-1997, IEC 751 1983], JPt100 [JIS C1604-1981]), conversion speed: 40 ms/channel,18-point terminal block

Q64RD-G

4 channels, RTD (Pt100 [JIS C1604-1997, IEC 751 1983], JPt100 [JIS C1604-1981], Ni100 [DIN43760 1987]),conversion speed: 40 ms/channel, 18-point terminal block, channel isolated

Q68RD3-G

8 channels, RTD (3-wire type, Pt100 [JIS C1604-1997, IEC 751 1983], JPt100 [JIS C1604-1981]), Ni100 [DIN43760 1987]),conversion speed: 320 ms/channel, 40-pin connector, channel isolated

Thermocouple

Q64TD

4 channels, thermocouple (JIS C1602-1995), conversion speed: 40 ms/channel, 18-point terminal block

Q64TDV-GH

4 channels, thermocouple (JIS C1602-1995), micro voltage (-100 to 100 mV), conversion speed: sampling cycle x 3,sampling cycle: 20 ms/channel, 18-point terminal block

Q68TD-G-H01 (note5,7)

8 channels, thermocouple (JIS C1602-1995, IEC 60584-1 [1995], IEC 60584-2 [1982]),conversion speed: 320 ms/8 channels, 40-pin connector

Temp-erature control

Platium RTD

Q64TCRT

4 channels, platimum RTD (Pt100, JPt100), no heater disconnection detection, sampling cycle: 0.5 s/4 channels,18-point terminal block

Q64TCRTBW

4 channels, platimum RTD (Pt100, JPt100), with heater disconnection detection, sampling cycle: 0.5 s/4 channels,two 18-point terminal blocks

Thermocouple

Q64TCTT

4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), no heater disconnection detection,sampling cycle: 0.5 s/4 channels, 18-point terminal block

Q64TCTTBW

4 channels, thermocouple (K, J, T, B, S, E, R, N, U, L, PLII, W5Re/W26Re), with heater disconnection detection,sampling cycle: 0.5 s/4 channels, two 18-point terminal blocks

Loop control

Q62HLC

2 channels, input: thermocouple/micro voltage/voltage/current, conversion speed (input): 25 ms/2 channels,sampling cycle: 25 ms/2 channels; output: 4 to 20 mA DC, conversion speed (output): 25 ms/2 channels;18-point terminal block, with 5 PID control modes

Product

Model

Outline

Channel isolated pulse input

QD60P8-G

8 channels, 30 kpps/10 kpps/1 kpps/ 100 pps/ 50 pps/ 10 pps/ 1 pps/0.1 pps, count input signal: 5/12 to 24 V DC

High-speed counter

QD62(note 2)

2 channels; 200/100/10 kpps; count input signal: 5/12/24 VDC; external input: 5/12/24 VDC; coincidence output: transistor (sink), 12/24 VDC, 0.5 A/point, 2 A/common; 40-pin connector

QD62D(note 2)

2 channels; 500/200/100/10 kpps; count input signal: EIA standards RS-422-A (differential line driver), external input: 5/12/24 VDC;coincidence output: transistor (sink), 12/24 VDC, 0.5 A/point, 2 A/common; 40-pin connector

QD62E(note 2)

2 channels; 200/100/10 kpps; count input signal: 5/12/24 VDC; external input: 5/12/24 VDC;coincidence output: transistor (source), 12/24 VDC, 0.1 A/point, 0.4 A/common; 40-pin connector

QD63P6(note 4)

6 channels, 200/100/10 kpps, count input signal: 5 V DC, 40-pin connector

QD64D2(note 4)

2 channels; 4 Mpps; count input signal: EIA standards RS-422-A (differential line driver); external input: 24 VDC;coincidence output: transistor (sink), 12/24 VDC, 0.5 A/point, 2 A/common; 40-pin connector

Posit-ioning

Opren collector output (note 4)

QD75P1

1 axis; control unit: mm, inch, degree, pulse; no. of positioning data: 600/axis; max. output pulse: 200 kpps; 40-pin connector

QD75P2

2 axes; 2-axis linear interpolation, 2-axis circular interpolation; control unit: mm, inch, degree, pulse;no. of positioning data: 600/axis; max. output pulse: 200 kpps; 40-pin connector

QD75P4

4 axes; 2-/3-/4-axis linear interpolation, 2-axis circular interpolation; control unit: mm, inch, degree, pulse;no. of positioning data: 600/axis; max. output pulse: 200 kpps; 40-pin connector

QD70P4

4 axes, control unit: pulse, no. of positioning data: 10/axis, max. output pulse: 200 kpps, 40-pin connector

QD70P8

8 axes, control unit: pulse, no. of positioning data: 10/axis, max. output pulse: 200 kpps, 40-pin connector

Differential output (note 4)

QD75D1

1 axis; control unit: mm, inch, degree, pulse; no. of positioning data: 600/axis; max. output pulse: 1 Mpps; 40-pin connector

QD75D2

2 axes; 2-axis linear interpolation, 2-axis circular interpolation; control unit: mm, inch, degree, pulse;no. of positioning data: 600/axis; max. output pulse: 1 Mpps; 40-pin connector

QD75D4

4 axes; 2-/3-/4-axis linear interpolation, 2-axis circular interpolation; control unit: mm, inch, degree, pulse;no. of positioning data: 600/axis; max. output pulse: 1 Mpps; 40-pin connector

QD70D4

4 axes, control unit: pulse, no. of positioning data: 10/axis, max. output pulse: 4 Mpps, 40-pin connector

QD70D8

8 axes, control unit: pulse, no. of positioning data: 10/axis, max. output pulse: 4 Mpps, 40-pin connector

With SSCNET connectivty (note 4)

QD75M1

1 axis; control unit: mm, inch, degree, pulse; no. of positioning data: 600/axis; 40-pin connector

QD75M2

2 axes; 2-axis linear interpolation, 2-axis circular interpolation; control unit: mm, inch, degree, pulse;no. of positioning data: 600/axis; 40-pin connector

QD75M4

4 axes; 2-/3-/4-axis linear interpolation, 2-axis circular interpolation; control unit: mm, inch, degree, pulse;no. of positioning data: 600/axis; 40-pin connector

With SSCNET  III connectivty (note 4)

QD75MH1

1 axis; control unit: mm, inch, degree, pulse; no. of positioning data: 600/axis; 40-pin connector; with SSCNET III connectivity

QD75MH2

2 axes; 2-axis linear interpolation, 2-axis circular interpolation; control unit: mm, inch, degree, pulse;no. of positioning data: 600/axis; 40-pin connector; with SSCNET III connectivity

QD75MH4

4 axes; 2-/3-/4-axis linear interpolation, 2-axis circular interpolation; control unit: mm, inch, degree, pulse;no. of positioning data: 600/axis; 40-pin connector; with SSCNET III connectivity

Open collector output with built-in counter function (note4)

QD72P3C3

Positioning: 3 axes, control unit: pulse, no. of positioning data: 1/axis, max. output pulse: 100 kpps,counter: 3 channels, 100 kpps,count input signal: 5/24 VDC, 40-pin connector

Product

Model

Outline

MES interface

QJ71MES96

MES interface module *MX MESInterface and CompactFlash card are required.

Option

GT05-MEM-128MC

128 MB CompactFlash card

GT05-MEM-256MC

256 MB CompactFlash card

Ethernet

QJ71E71-100

10BASE-T/100BASE-TX

QJ71E71-B2

10BASE2

QJ71E71-B5

10BASE5

Serial communication

QJ71C24N

RS-232: 1 channel, RS-422/485: 1 channel, total transmission speed of 2 channels: 230.4 kbps

QJ71C24N-R2

RS-232: 2 channels, total transmission speed of 2 channels: 230.4 kbps

QJ71C24N-R4

RS-422/485: 2 channels, total transmission speed of 2 channels: 230.4 kbps

Intelligent communication

QD51

BASIC program execution module, RS-232: 2 channels

QD51-R24

BASIC program execution module, RS-232: 1 channel, RS-422/485: 1 channel

SW□IVD-AD51HP (Note 6)

Software package for QD51, AD51H-S3, and A1SD51S

Product

Model

Outline

CC-link IE Controller Network

QJ71GP21-SX

Multi-mode fiber optic cable, dual loop, controller network (control/normal station)

QJ71GP21S-SX

Multi-mode fiber optic cable, dual loop, controller network (control/normal station), with external power supply function

MELSECNET/H

SI/QSI fiber optic cable

QJ71LP21-25

SI/QSI/H-PCF/ broadband H-PCF fiber optic cable, dual loop,controller network (control/normal station) or remote I/O network (remote mater station)

QJ71LP21S-25

SI/QSI/H-PCF/ broadband H-PCF fiber optic cable, dual loop,controller network (control/normal station) or remote I/O network (remote mater station), with external power supply function

QJ72LP25-25

SI/QSI/H-PCF/ broadband H-PCF fiber optic cable, dual loop, remote I/O network (remote I/O station)

GI-50/125 fiber optic cable

QJ71LP21G

GI-50/125 fiber optic cable, dual loop, controller network (control/normal station) or remote I/O network (remote master station)

QJ72LP25G

GI-50/125 fiber optic cable, dual loop, remote I/O network (remote I/O station)

GI-62.5/125 fiber optic cable

QJ71LP21GE

GI-62.5/125 fiber optic cable, dual loop, controller network (control/normal station) or remote I/O network (remote master station)

QJ72LP25GE

GI-62.5/125 fiber optic cable, dual loop, remote I/O network (remote I/O station)

Coacial cable

QJ71BR11

3C-2V/5C-2V coaxial cable, single bus, controller network (control/normal station) or remote I/O network (remote master station)

QJ72BR15

3C-2V/5C-2V coaxial cable, single bus, remote I/O network (remote I/O station)

CC-Link

QJ61BT11N

Master/local station, CC-Link Ver. 2 compatible

CC-Link/LT

QJ61CL12

Master station

FL-net (OPCN-2)

Ver.2

QJ71FL71-T-F01

10BASE-T, 100BASE-TX

QJ71FL71-B2-F01

10BASE-2

QJ71FL71-B5-F01

10BASE-5

Ver.1

QJ71FL71-T

10BASE-T

QJ71FL71-B2

10BASE-2

QJ71FL71-B5

10BASE-5

AS-i

QJ71AS92

Master station, AS-Interface Specification Version 2.11 compatible

Product

Model

Outline

CC-Link IE Controller Network

Q80BD-J71GP21-SX

PCI bus, Japanese/English OS compatible, multi-mode fiber optic cable, dual loop, controller network (control/normal station)

Q80BD-J71GP21S-SX

PCI bus, Japanese/English OS compatible, multi-mode fiber optic cable, dual loop, controller network (control/normal station),with external power supply function

MELSECNET/H

(10)

SI/QSI fiber optic cable

Q81BD-J71LP21-25

PCI Express bus, Japanese/English OS compatible, multi-mode fiber optic cable, dual loop, controller network (control/normal station)

Q80BD-J71LP21-25

PCI bus, Japanese/English OS compatible, SI/QSI/H-PCF/broadband H-PCF fiber optic cable, dual loop,controller network (control/normal station)

Q80BD-J71LP21S-25

PCI bus, Japanese/English OS compatible, SI/QSI/H-PCF/broadband H-PCF fiber optic cable, dual loop,controller network (control/normal station), with external power supply function

GI-50/125 fiber optic cable

Q80BD-J71LP21G

PCI bus, Japanese/English OS compatible, GI-50/125 fiber optic cable, dual loop, controller network (control/normal station)

GI-62.5/125 fiber optic cable

Q80BD-J7121GE

PCI bus, Japanese/English OS compatible, GI-62.5/125 fiber optic cable, dual loop, controller network (control/normal station)

Coaxial cable

Q80BD-J71BR11

PCI bus, Japanese/English OS compatible, 3C-2V/5C-2V coaxial cable, single bus, controller network (control/normal station)

CC-Link

Q81BD-J61BT11

PCI Express bus, Japanese/English OS compatible, master/local interface board, CC-Link Ver. 2 compatible

Q80BD-J61BT11N

PCI bus, Japanese/English OS compatible, master/local interface board, CC-Link Ver. 2 compatible
