UV/UVC lamps

TECHNICAL DATA

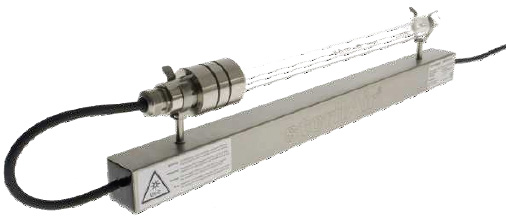

Model

sterilAir® AQT2000

Length versions

AQT2036 / AQT2030 / AQT2020

El. pow. cons. [W]; max [mA]

36; 170 / 36; 170 / 18; 80

Supply voltage

230VAC ±10%; 50..60 Hz

Material

stainl. steel (WN 1.4301), ABS

Tube types

UVC 2036-2K

UVC 2030-2K

UVC 2020-2K

Tube replacem. interval [hrs.]

12 000 (ca. 70% residual cap.)

UVC Output total, 254 nm

15 W / 10 W / 5,6 W

Type of mounting

Freestanding on basin floor

Dimensions (LxHxD) [mm]

950x100x35 / 750x100x35 /600x100x35

Qualification

CE, EMC, IP 68

Weight per unit [kg]

2,7 – 2,8

TECHNICAL DATA

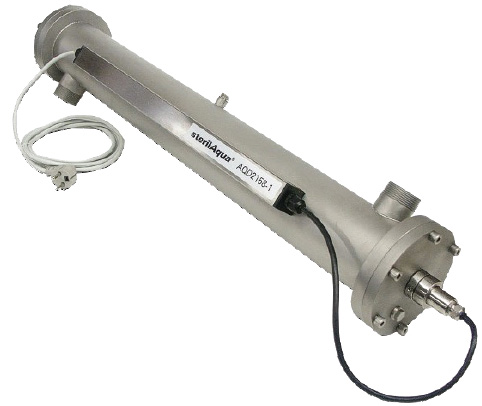

Model

sterilAir® AQD2100-1

Capacity versions

AQT2036 / AQT2030 / AQT2020

Operating temperature

0 – 40° C

Optional monitoring systems

UES2000 or UES2004-SE

El. pow. cons. [W]; max [mA]

36; 170 / 58; 240

Supply voltage

230VAC ±10%; 50..60 Hz

Material

stainl. steel (WN 1.4301),

steel (WN 1.4435), ABS

Maximal flow rate[L/h]

2000 / 2800

(at 100% UV transparency)

Maximal pressure [bar]

10

Tube replacem. interval [hrs.]

8500 (ca. 70% residual cap.)

Dimensions (LxHxD) [mm]

1000 x 220 x 200

Supply

external thread 1 1/2“

Type of mounting

pipe clamp

Weight per unit [kg]

12,8

TECHNICAL DATA

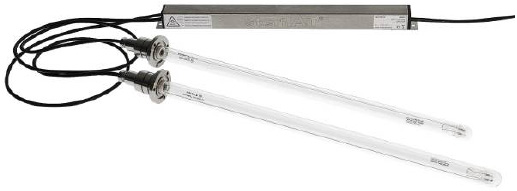

Model

sterilAir® EFD2000, EFM2000

Length versions

EF2036 / EF2030 / EF2020

El. pow. cons. [W]; max [mA]

2x36; 300 / 2x36; 300 / 2x18; 170

1x36; 170 / 1x36; 170 / 1x18; 80

Supply voltage

230VAC ±10%; 50..60 Hz

Material

stainl. steel (WN 1.4301), ABS

Tube types

UVC 2036-2N / -2K / -2H

UVC 2030-2N / -2K

UVC 2020-2N / -2K

Tube replacem. interval [hrs.]

12 000 (ca. 70% residual cap.)

UVC Output total, 254 nm

15 W / 10 W / 5,6 W (per tube)

Type of mounting

Flange with 3 boreholes 5,3 mm

Dimensions tubes (LxDia) [mm]

Ballast casing (LxHxD) [mm]

822/565/380x25

500x35x35

Qualification

CE, EMC, IP 52-65

Weight per unit [kg]

2,2 – 3,0
