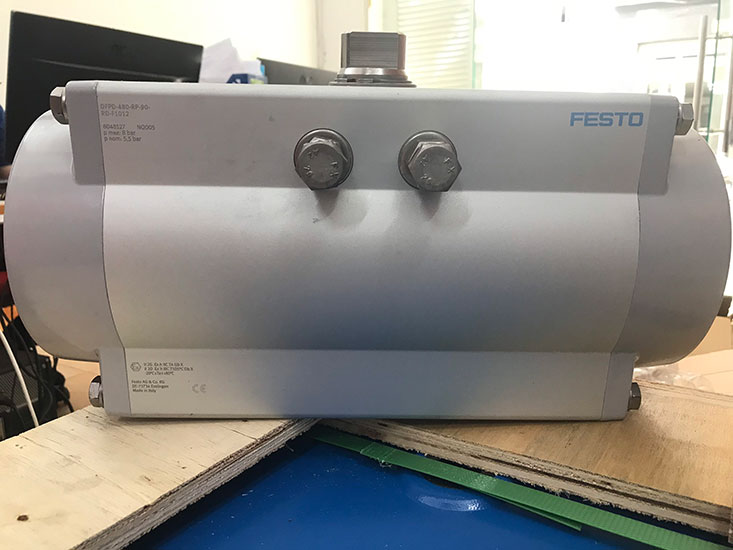

Position drive dimensions
|
480
|
|
Flange drilling screen
|
F1012
|
|
Swivel angle [deg]
|
90
|
|
Adjustable range end position at 0° [deg]
|
-5 to 5
|
|
Adjustable range end position at 90° [deg]
|
-5 to 5
|
|
Shaft connection Depth [mm]
|
29
|
|
Standard connection to fitting
|
ISO 5211
|
|
installation position
|
arbitrary
|
|
Principle of operation
|
double acting
|
|
Construction set up
|
Toothed rack/pinion
|
|
Closing direction
|
Right closing
|
|
Valve connection corresponds to standard
|
VDI/VDE 3845 (NAMUR)
|
|
Connection for position controllers and position feedback signal comply with standard
|
VDI/VDE 3845 Size AA 2
|
|
Safety Integrity Level (SIL)
|
Produkt kann eingesetzt werden in SRP/CS bis SIL 2 High Demand
|
|

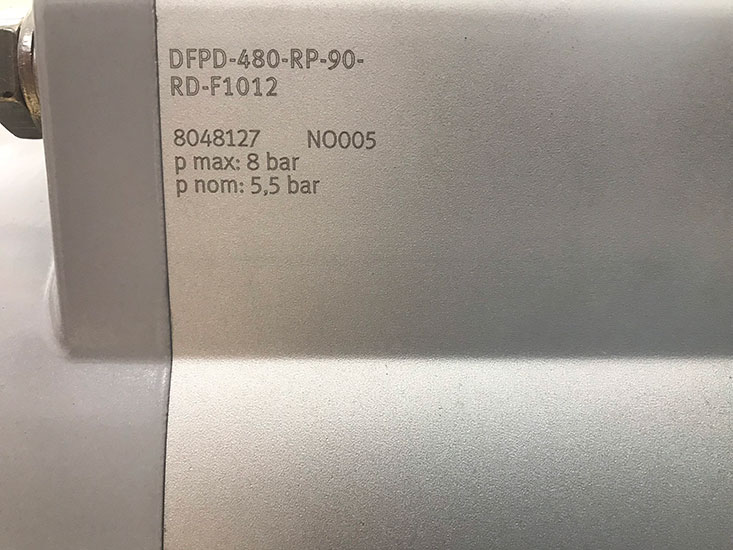

Operating pressure [bar]
|
2 to 8
|
|
Nominal operating pressure [bar]
|
5,5
|
|
CE certificate (see declaration of conformity)
|
to EU EX protection directive (ATEX)
|
|
Certified awarding point
|
TÜV Rhineland
|
|
ATEX gas category
|
II 2G
|
|
ATEX dust category
|
II 2D
|
|
Ex ignition protection type gas
|
Ex h IIC T4 Gb X
|
|
Ex ignition protection type dust
|
Ex h IIIC T105°C Db X
|
|
Ex ambient temperature
|
-20°C <= Ta <= +80°C
|
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4]
|
|
Information about operating and control medium
|
Oiled operation possible (required in further operations)
Pressure dew point 10°C under ambient and medium temperature
|
|
Bearing temperature [°C]
|
-20 to 60
|
|
ambient temperature [°C]
|
-20 to 80
|
|
Rotary torque for nominal operating pressure and 0° pivot angle [Nm]
|
474,0
|
|
Rotary torque for nominal operating pressure and 90° pivot angle [Nm]
|
474,0
|
|
Information about torque
|
The operating torque of the actuator may not be higher than the maximum permitted torque listed in ISO 5211, related to the size of the fastening flange and the coupling.
|
|
Air consumption a 6 bar per cycle 0°-90°-0° [LTR]
|
40,5
|
|
Product weight [g]
|
16.025
|
|
Shaft connection
|
T27
|
|
Pneumatic connection
|
G1/4
|
|
Material information
|
RoHs compliant
|
|
Connection plate material
|
Aluminium wrought alloy, anodised
|
|
Cover material
|
Alu-Druckguss, beschichtet
|
|
Seals material
|
NBR
|
|
Housing material
|
Aluminium wrought alloy, anodised
|
|
Piston material
|
Aluminium die casting
|
|
Bearing material
|
POM
|
|
Lug material
|
Steel
|
|
Screws material
|
High-alloyed stainless steels
|
|
Shaft material
|
Nickel-plated steel
|
